Demos

Three independent demo applications ship with datasole, each implementing the same realtime webapp with a different framework stack. All demos are in the demos/ directory and are tested by the automated e2e suite.

Demo	Client	Server	Port
Vanilla JS	Plain DOM + IIFE bundle	Node.js `http.createServer`	4000
React + Express	React 19 + Vite	Express 5	4001
Vue 3 + NestJS	Vue 3 SFC + Vite	NestJS 11	4002

What Each Demo Shows

Every demo is a full-screen, dark-themed, responsive three-panel layout. All three share a single shared/contract.ts (AppContract + RpcMethod / Event / StateKey enums) — the same contract-first pattern as the Developer Guide and Tutorials.

Server Metrics — live-updating dashboard (uptime, connections, CPU, memory, message throughput), pushed from the server every 2 seconds via ds.primitives.fanout.broadcast(Event.SystemMetrics, …).
Global Chat Room — client emits Event.ChatSend, server maintains a 50-message history under StateKey.ChatMessages and broadcasts Event.ChatMessage for instant delivery.
RPC Random Number — client calls ds.rpc(RpcMethod.RandomNumber, { min, max }), server returns a cryptographically random integer with timing metadata.

Server-Side Logic (shared across all three)

All three demos implement identical business logic — the only difference is how it's wired into the framework:

typescript

import { Event, RpcMethod, StateKey, type ChatMessage } from './shared/contract.js';

// Metrics broadcast every 2s
setInterval(() => {
  const snap = ds.metrics.snapshot();
  ds.primitives.fanout.broadcast(Event.SystemMetrics, {
    uptime: snap.uptime,
    connections: snap.connections,
    messagesIn: snap.messagesIn,
    messagesOut: snap.messagesOut,
    cpuUsage: Math.round(process.cpuUsage().user / 1000),
    memoryMB: Math.round(process.memoryUsage().heapUsed / 1024 / 1024),
    timestamp: Date.now(),
  });
}, 2000);

// Chat — receive, store, broadcast
ds.primitives.events.on(Event.ChatSend, ({ data }) => {
  const { text, username } = data;
  const msg: ChatMessage = { id: crypto.randomUUID(), text, username, ts: Date.now() };
  chatHistory.push(msg);
  if (chatHistory.length > 50) chatHistory.shift();
  void ds.primitives.live.setState(StateKey.ChatMessages, [...chatHistory]);
  ds.primitives.fanout.broadcast(Event.ChatMessage, msg);
});

// RPC — random number
ds.rpc.register(RpcMethod.RandomNumber, async ({ min, max }) => {
  return {
    value: crypto.randomInt(Math.floor(min), Math.floor(max) + 1),
    generatedAt: Date.now(),
  };
});

Vanilla JS

Zero frameworks, zero build step. Pure browser JavaScript with the datasole IIFE bundle, served by a plain Node.js HTTP server.

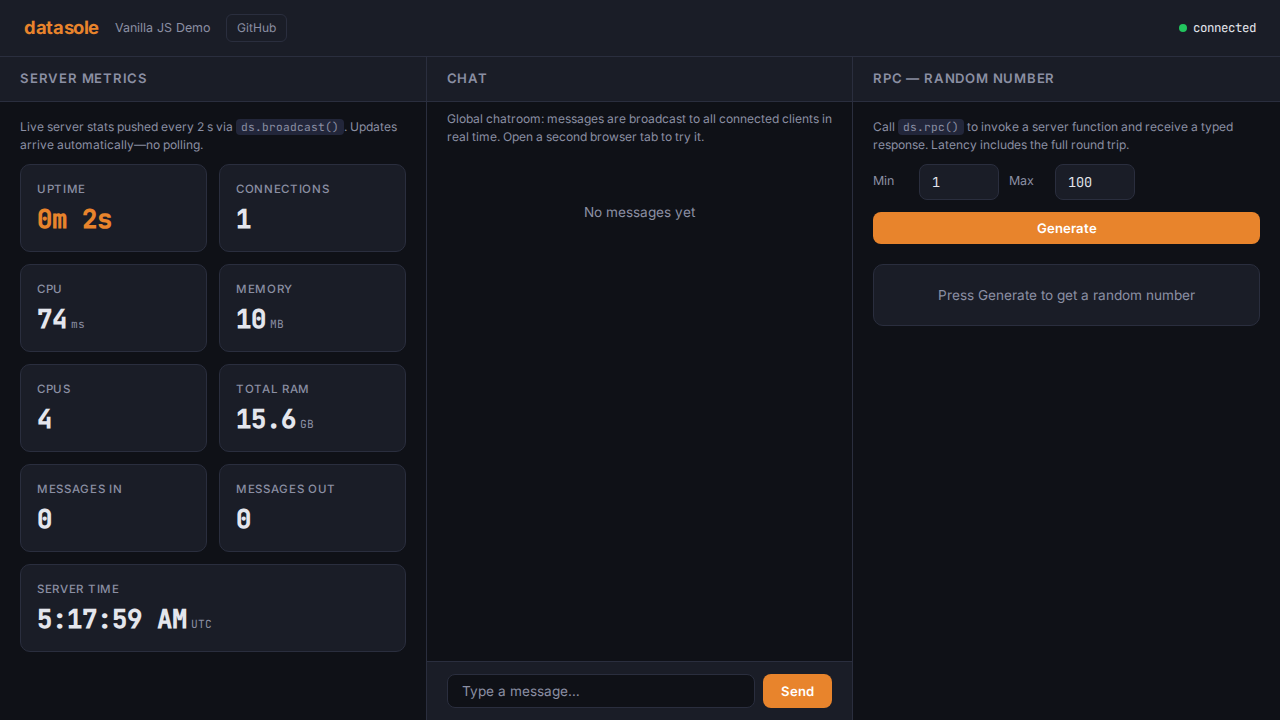

Vanilla demo — connected with live metrics

Quick Start

bash

cd demos/vanilla
npm install
npm run dev       # node --watch server/index.mjs

Open http://localhost:4000.

Integration Pattern

The server entrypoint is server/index.mjs. It creates a plain http.Server, serves static files from client/, and attaches DatasoleServer for WebSocket upgrades plus automatic runtime asset serving.

Server Walkthrough

javascript

// server/index.mjs — key parts
import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';

const ds = new DatasoleServer<AppContract>();

// Register chat handler, RPC, metrics broadcast (see shared logic above)

const httpServer = createServer(serveStatic);
ds.transport.attach(httpServer);
httpServer.listen(4000);

Client Walkthrough

The client loads the IIFE bundle via <script> tag, giving a window.Datasole global. No bundler needed.

javascript

// client/app.mjs — key parts (imports RpcMethod, Event, StateKey from /shared/contract.mjs)
const ds = new Datasole.DatasoleClient({
  url: 'ws://' + location.host,
});
ds.connect();

ds.on(Event.SystemMetrics, function (ev) {
  // Update DOM with ev.data.uptime, ev.data.connections, etc.
});

ds.subscribeState(StateKey.ChatMessages, function (messages) {
  /* render history */
});
ds.on(Event.ChatMessage, function (ev) {
  /* append new message */
});
ds.emit(Event.ChatSend, { text, username });

const data = await ds.rpc(RpcMethod.RandomNumber, { min: 1, max: 100 });

DatasoleServer serves runtime files automatically:

/__ds/datasole.iife.min.js — client bundle (loaded via <script> tag)
/__ds/datasole-worker.iife.min.js — worker script (loaded automatically by DatasoleClient)

Screenshots

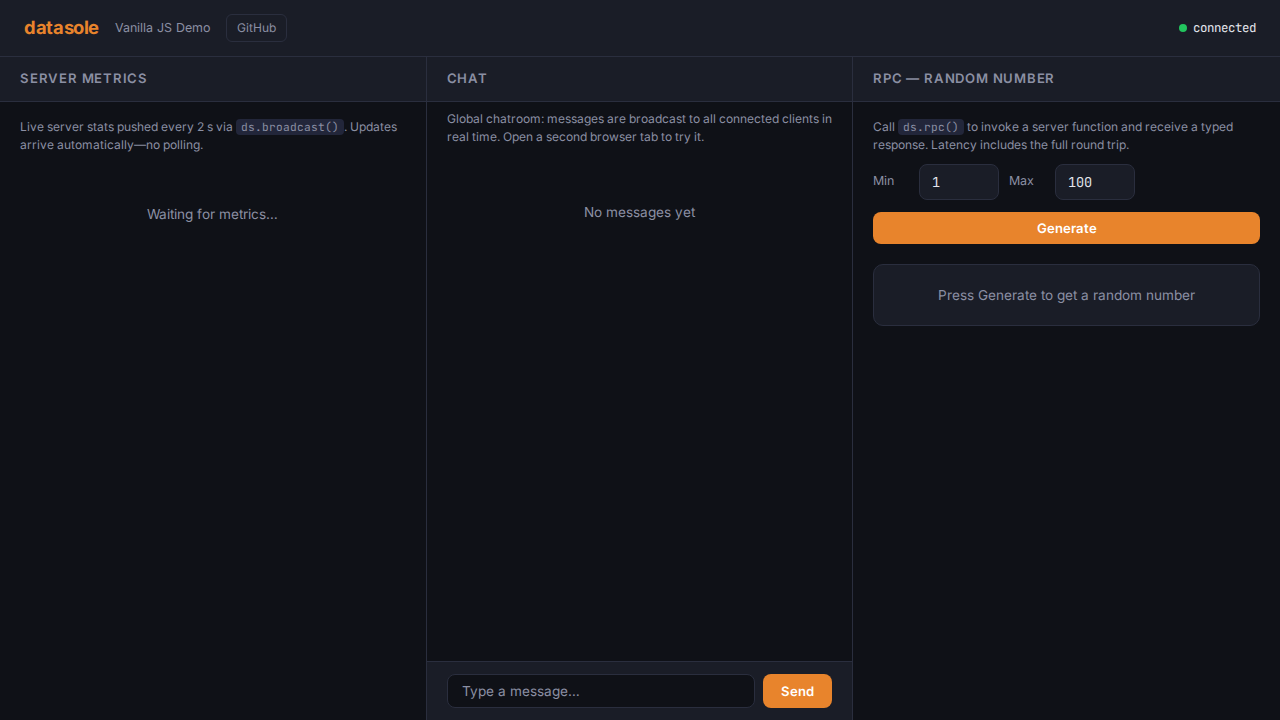

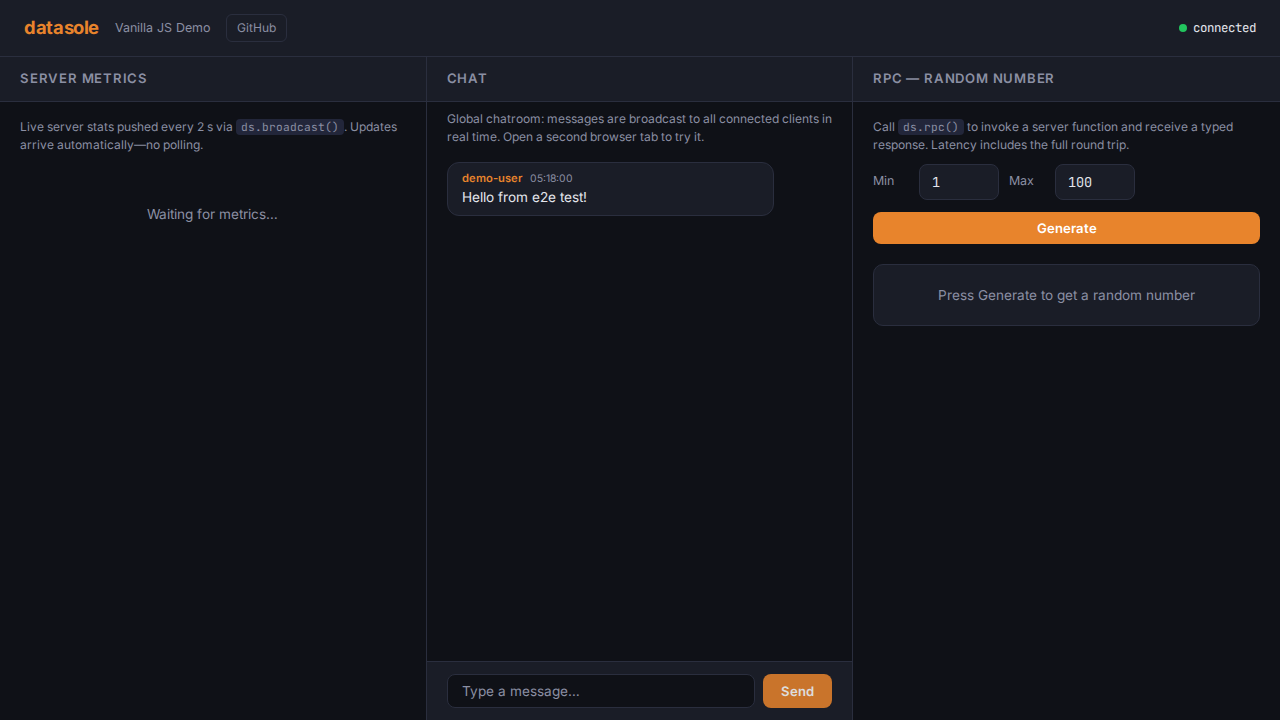

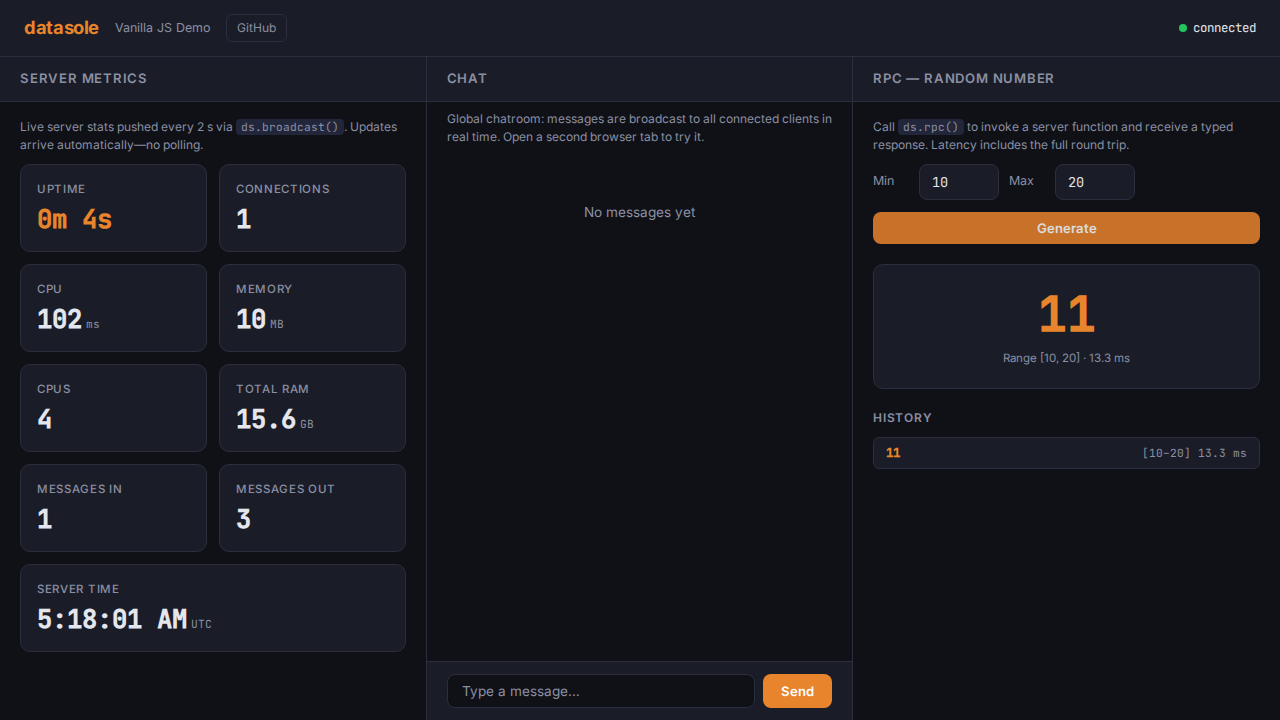

Initial load	Chat	RPC result

React + Express

React 19 with Vite for the frontend, Express 5 for the backend. TypeScript throughout, with a custom useDatasole hook managing the client lifecycle.

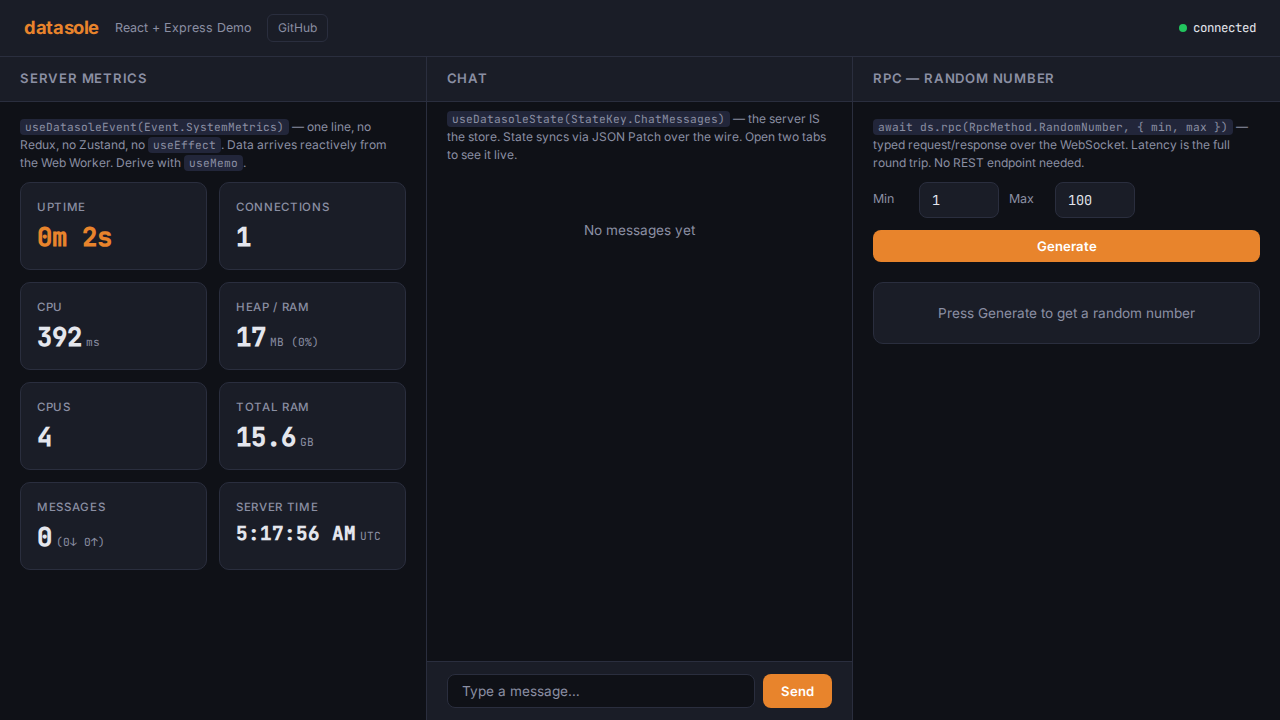

React + Express demo — metrics dashboard

Quick Start

bash

cd demos/react-express
npm install
npm run dev       # concurrently: Vite on :5173 + Express on :4001

Open http://localhost:5173. For production: npm run build && npm start, then open http://localhost:4001.

Integration Pattern

In development, Vite proxies /__ds (WebSocket + runtime assets) to Express. In production, Express serves the Vite-built static files while DatasoleServer serves runtime assets under /__ds.

Server Walkthrough

typescript

// server/index.ts — key parts
import express from 'express';
import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';

const app = express();

// Serve Vite build in production
const clientDist = resolve(__dirname, '../dist/client');
if (existsSync(clientDist)) {
  app.use(express.static(clientDist));
  app.get('/{*splat}', (_req, res) => {
    res.sendFile(resolve(clientDist, 'index.html'));
  });
}

const httpServer = createServer(app);
const ds = new DatasoleServer<AppContract>();
// Default executor model is async; set executor options explicitly if needed.
ds.transport.attach(httpServer);

// Register chat, RPC, metrics (see shared logic above)

httpServer.listen(4001);

Vite Dev Proxy

typescript

// vite.config.ts — proxy WebSocket + runtime assets to Express
proxy: {
  '/__ds': { target: 'http://localhost:4001', ws: true },
  '/__ds/datasole-worker.iife.min.js': { target: 'http://localhost:4001' },
}

Client Walkthrough — Hooks

The hook layer replaces any need for Redux, Zustand, or other state stores. Wrap your app in DatasoleProvider, and all descendants get reactive access to server data via hooks:

tsx

// App.tsx — one-time setup
import { DatasoleProvider } from './hooks/useDatasole';

export function App() {
  return (
    <DatasoleProvider>
      <Layout>
        <MetricsDashboard />
        <ChatRoom />
        <RpcDemo />
      </Layout>
    </DatasoleProvider>
  );
}

Child components consume server data with zero boilerplate:

tsx

// MetricsDashboard.tsx — entire hook usage
import { useMemo } from 'react';
import { Event } from '../../shared/contract';
import { useDatasoleEvent } from '../hooks/useDatasole';

export function MetricsDashboard() {
  // One line — re-renders when the server broadcasts new data
  const metrics = useDatasoleEvent<Metrics>(Event.SystemMetrics);

  // Derived values with useMemo, no selectors or reducers
  const memoryPct = useMemo(
    () => (metrics ? Math.round((metrics.memoryMB / (metrics.totalMemoryGB * 1024)) * 100) : 0),
    [metrics?.memoryMB, metrics?.totalMemoryGB],
  );

  return (
    <p>
      {metrics?.memoryMB} MB ({memoryPct}%)
    </p>
  );
}

Three hook flavors cover every datasole pattern:

tsx

import { Event, RpcMethod, StateKey } from '../shared/contract';

// Server broadcast events → React state
const metrics = useDatasoleEvent<Metrics>(Event.SystemMetrics);

// Server-managed state → React state (synced via JSON Patch)
const messages = useDatasoleState<ChatMessage[]>(StateKey.ChatMessages);

// Raw client for imperative calls (emit, rpc)
const ds = useDatasoleClient();
await ds?.rpc(RpcMethod.RandomNumber, { min: 1, max: 100 });

// Connection state
const conn = useConnectionState(); // 'connected' | 'disconnected' | ...

No prop drilling, no store modules, no actions/reducers. The server is the store.

Screenshots

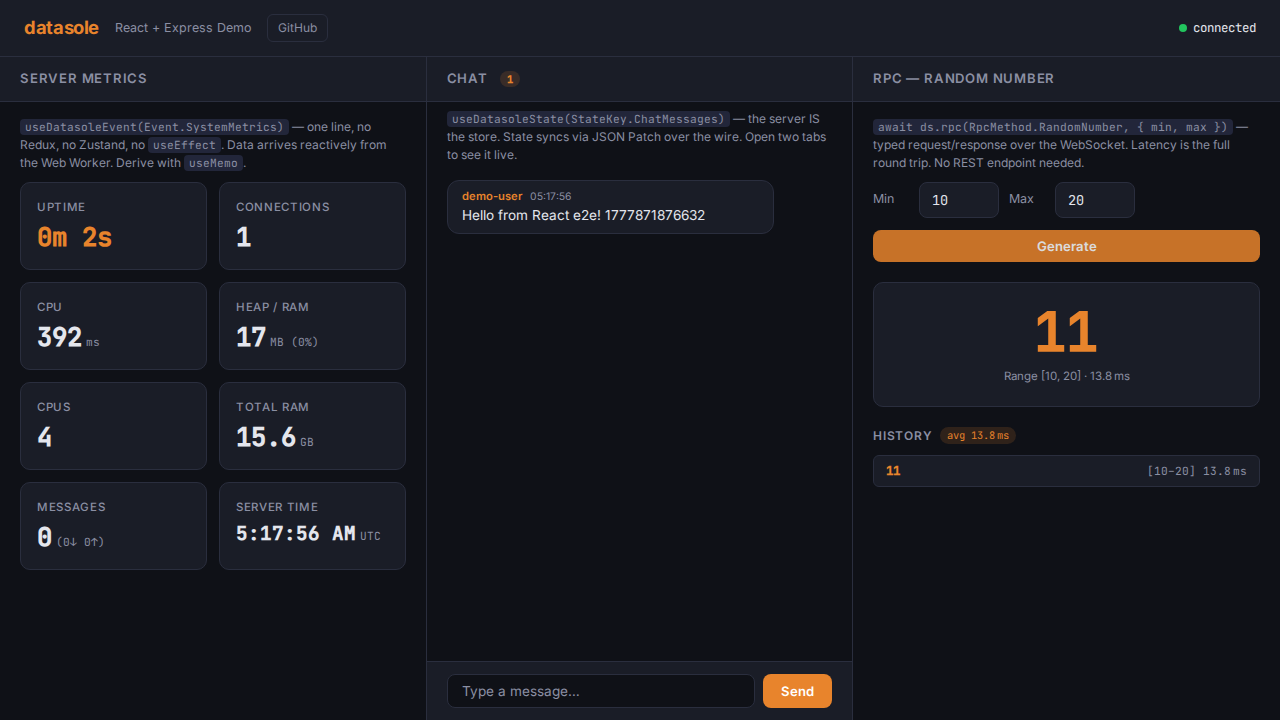

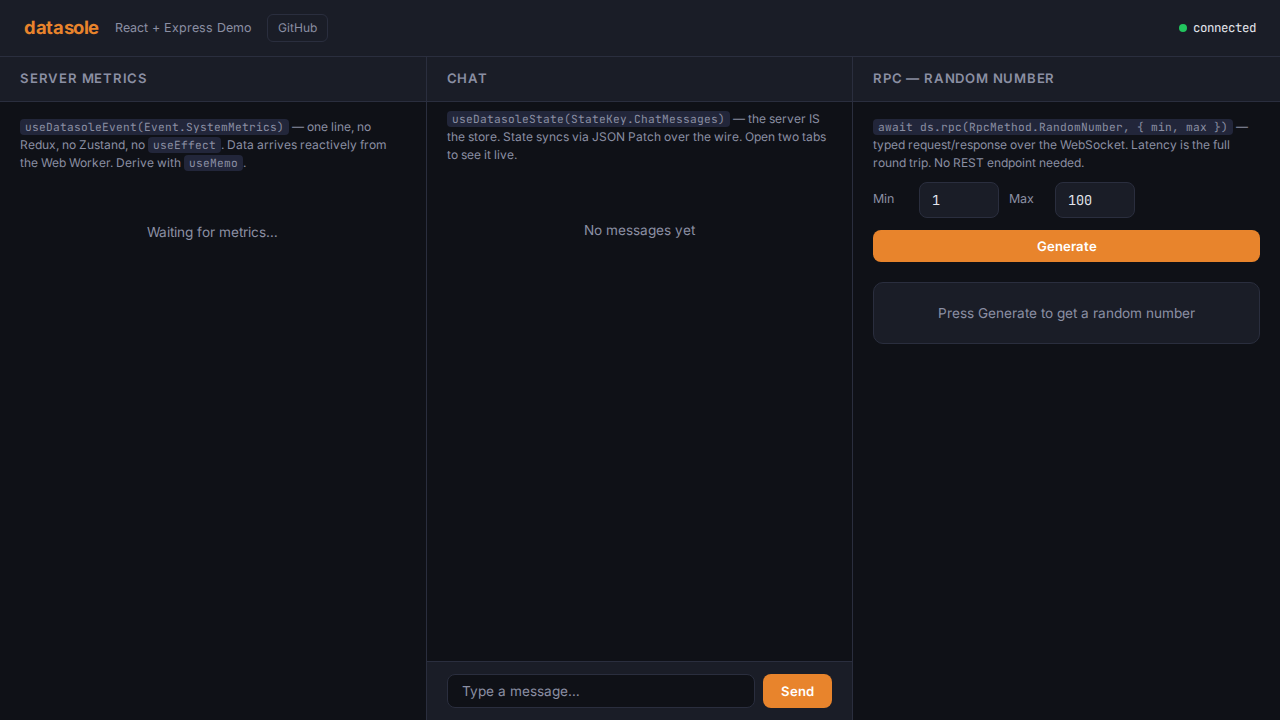

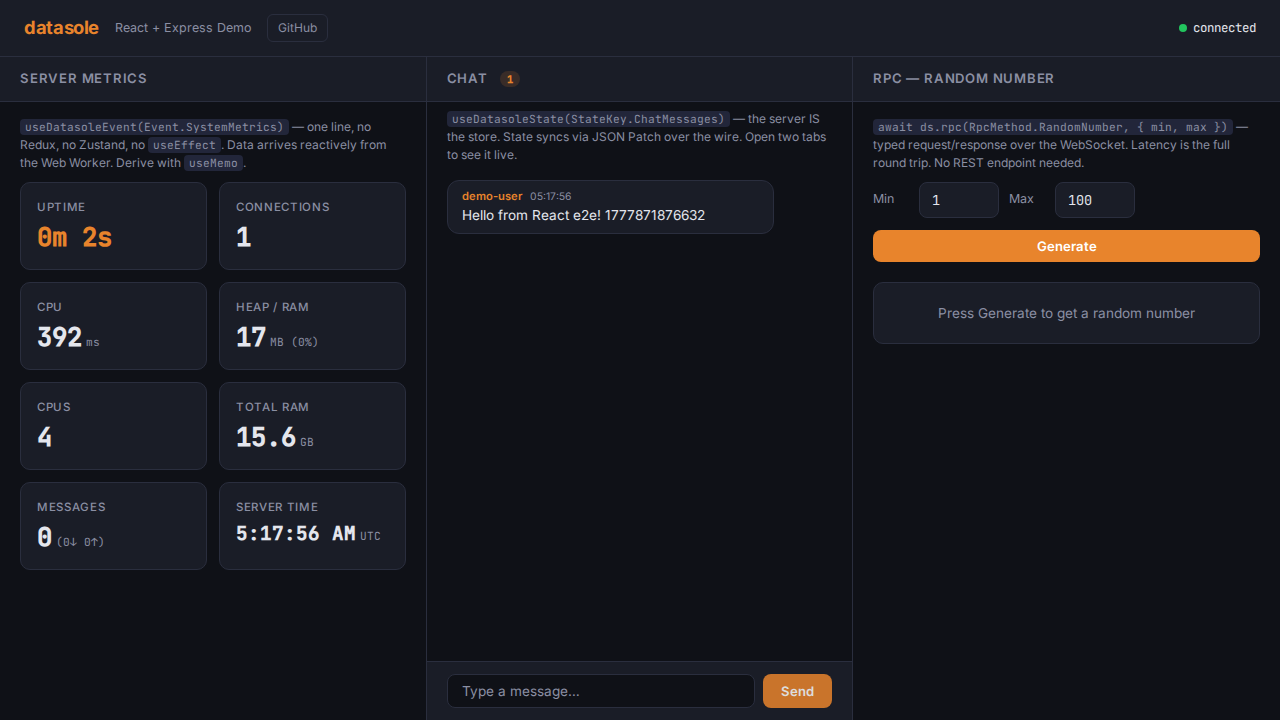

Initial load	Chat	RPC result

Vue 3 + NestJS

Vue 3 Single File Components with Vite, NestJS 11 for the backend. The datasole server logic lives in an @Injectable() service with NestJS lifecycle hooks.

Vue 3 + NestJS demo — metrics dashboard

Quick Start

bash

cd demos/vue-nestjs
npm install
npm run dev       # concurrently: Vite on :5174 + NestJS on :4002

Open http://localhost:5174. For production: npm run build && npm start, then open http://localhost:4002.

Integration Pattern

Server Walkthrough — NestJS Service

The DatasoleService wraps all datasole logic in an injectable service with proper lifecycle management:

typescript

// server/src/datasole.service.ts — key parts
import { Injectable, OnModuleDestroy } from '@nestjs/common';
import { DatasoleServer } from 'datasole/server';
import { Event, RpcMethod, type AppContract } from '../../shared/contract.js';

@Injectable()
export class DatasoleService implements OnModuleDestroy {
  readonly ds = new DatasoleServer<AppContract>();
  private metricsInterval: ReturnType<typeof setInterval> | null = null;

  async init(): Promise<void> {
    // Register chat, RPC, metrics (see shared logic above)
    this.ds.primitives.events.on(Event.ChatSend, handler);
    this.ds.rpc.register(RpcMethod.RandomNumber, handler);
    this.metricsInterval = setInterval(broadcastMetrics, 2000);
  }

  onModuleDestroy(): void {
    if (this.metricsInterval) clearInterval(this.metricsInterval);
    this.ds.close();
  }
}

Bootstrap attaches to the raw Node HTTP server. No manual worker-file route is needed:

typescript

// server/src/main.ts
import 'reflect-metadata'; // required before NestJS
import { NestFactory } from '@nestjs/core';
import { AppModule } from './app.module.js';
import { DatasoleService } from './datasole.service.js';

const app = await NestFactory.create(AppModule);

const datasoleService = app.get(DatasoleService);
await datasoleService.init();
datasoleService.ds.transport.attach(app.getHttpServer());
await app.listen(4002);

Client Walkthrough — Composables

The composable layer replaces any need for Vuex or Pinia. Call useDatasole() once at the app root, and all descendants get reactive access to server data via inject():

typescript

// App.vue — one-time setup
import { useDatasole } from './composables/useDatasole';
useDatasole(); // provides the client to the entire component tree

Child components consume server data with zero boilerplate:

vue

<!-- MetricsDashboard.vue — entire script section -->
<script setup lang="ts">
import { computed } from 'vue';
import { Event } from '../../shared/contract';
import { useDatasoleEvent } from '../composables/useDatasole';

interface Metrics {
  uptime: number;
  connections: number;
  memoryMB: number;
  totalMemoryGB: number;
}

// One line — this ref auto-updates from the Web Worker
const metrics = useDatasoleEvent<Metrics>(Event.SystemMetrics);

// Computed properties compose naturally
const memoryPct = computed(() =>
  metrics.value
    ? Math.round((metrics.value.memoryMB / (metrics.value.totalMemoryGB * 1024)) * 100)
    : 0,
);
</script>

<template>
  <p v-if="metrics">Memory: {{ metrics.memoryMB }} MB ({{ memoryPct }}%)</p>
</template>

Three composable flavors cover every datasole pattern:

typescript

import { Event, RpcMethod, StateKey } from '../shared/contract';

// Server broadcast events → reactive ref
const metrics = useDatasoleEvent<Metrics>(Event.SystemMetrics);

// Server-managed state → reactive ref (synced via JSON Patch)
const messages = useDatasoleState<ChatMessage[]>(StateKey.ChatMessages);

// Raw client for imperative calls (emit, rpc)
const ds = useDatasoleClient();
await ds.value?.rpc(RpcMethod.RandomNumber, { min: 1, max: 100 });

// Connection state
const conn = useConnectionState(); // 'connected' | 'disconnected' | ...

No props drilling, no store modules, no actions/mutations. The server is the store.

Vite Dev Proxy

typescript

// vite.config.ts — proxy WebSocket + runtime assets to NestJS
proxy: {
  '/__ds': { target: 'http://localhost:4002', ws: true },
  '/__ds/datasole-worker.iife.min.js': { target: 'http://localhost:4002' },
  '/datasole-worker.iife.min.js': { target: 'http://localhost:4002' },
}

NestJS-Specific Notes

reflect-metadata must be imported before any NestJS import — it's the first line of main.ts
tsconfig.server.json enables experimentalDecorators and emitDecoratorMetadata (the base tsconfig doesn't include these)
Production static serving uses @nestjs/serve-static with ServeStaticModule.forRoot()
Datasole attaches directly to app.getHttpServer() — no NestJS WebSocket gateway is needed
Vue demo uses workerUrl: '/datasole-worker.iife.min.js' to align with Nest static middleware precedence

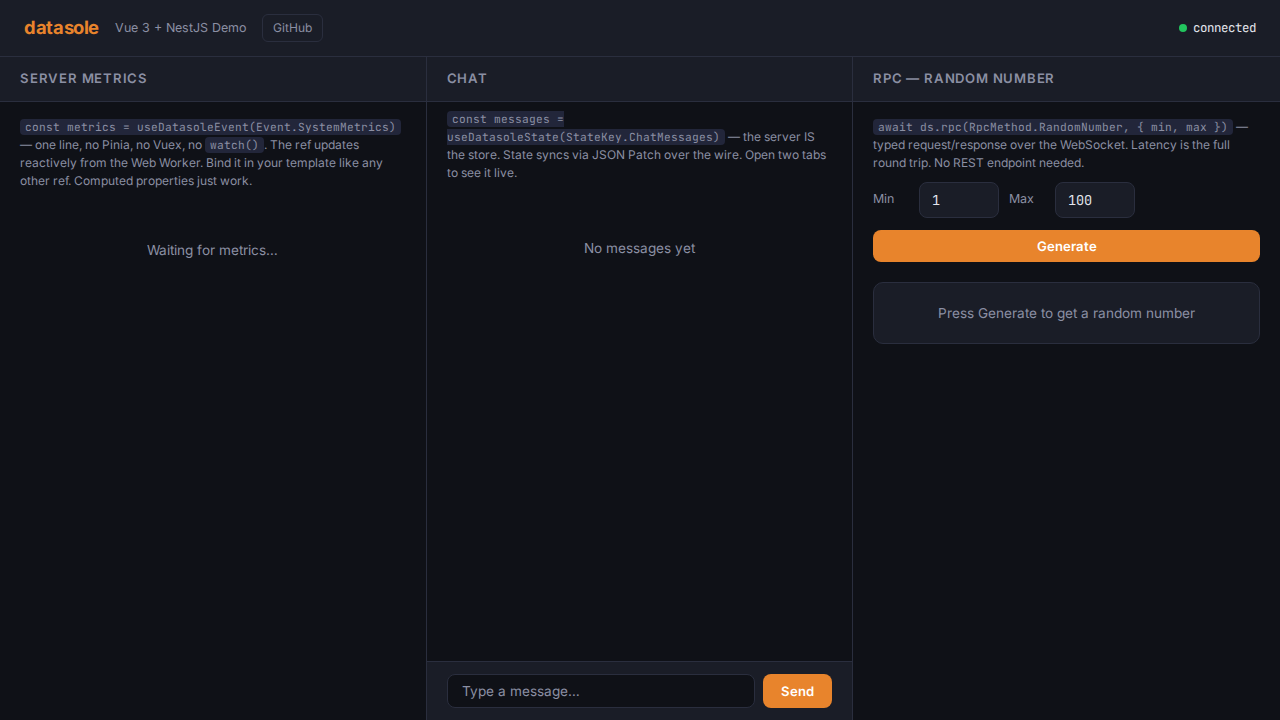

Screenshots

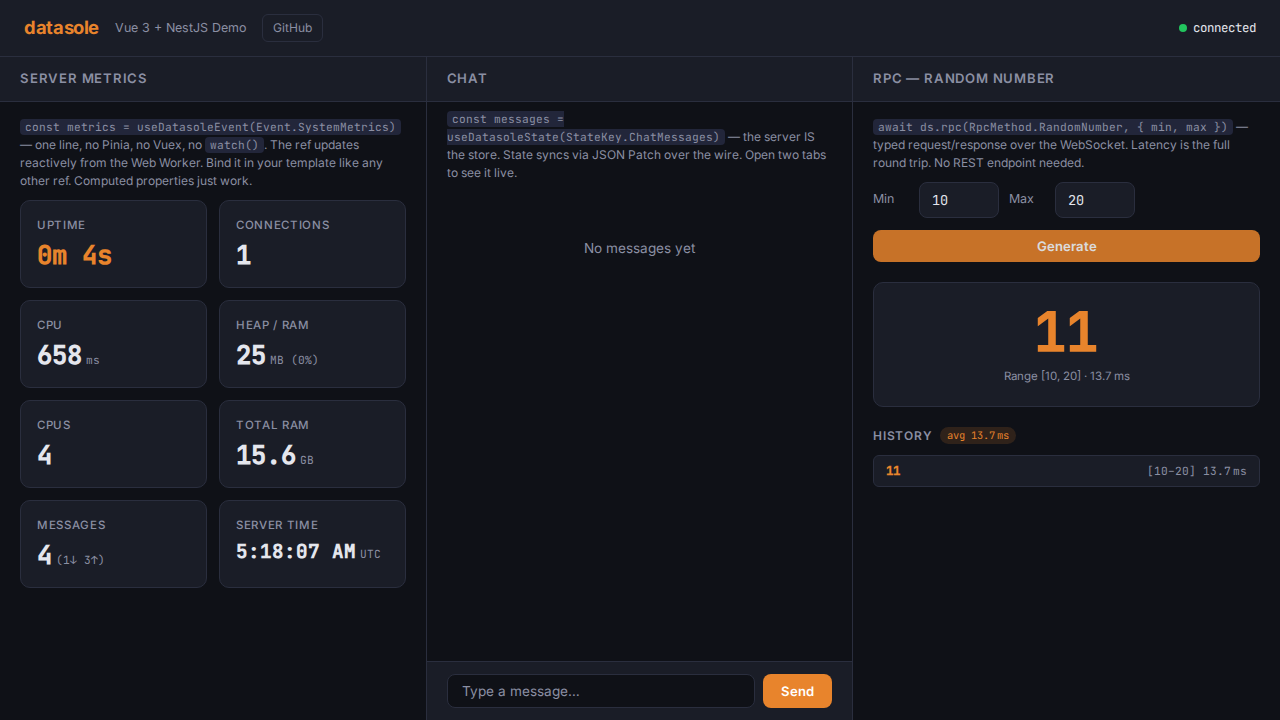

Initial load	Chat	RPC result

Running the E2E Tests

The demo e2e tests are an optional test suite, separate from the core e2e tests:

bash

npm run test:e2e:demos

This:

Installs each demo's dependencies (if node_modules is missing)
Builds each demo for production
Starts the production server
Runs Playwright tests: connection, live metrics (within 5s), chat send/receive, RPC call/response
Captures screenshots to docs/public/screenshots/ and .screenshots/

The screenshots on this page are generated automatically by this test suite.

Demos ​

What Each Demo Shows ​

Server-Side Logic (shared across all three) ​

Vanilla JS ​

Quick Start ​

Integration Pattern ​

Server Walkthrough ​

Client Walkthrough ​

Screenshots ​

React + Express ​

Quick Start ​

Integration Pattern ​

Server Walkthrough ​

Vite Dev Proxy ​

Client Walkthrough — Hooks ​

Screenshots ​

Vue 3 + NestJS ​

Quick Start ​

Integration Pattern ​

Server Walkthrough — NestJS Service ​

Client Walkthrough — Composables ​

Vite Dev Proxy ​

NestJS-Specific Notes ​

Screenshots ​

Running the E2E Tests ​

Demos

What Each Demo Shows

Server-Side Logic (shared across all three)

Vanilla JS

Quick Start

Integration Pattern

Server Walkthrough

Client Walkthrough

Screenshots

React + Express

Quick Start

Integration Pattern

Server Walkthrough

Vite Dev Proxy

Client Walkthrough — Hooks

Screenshots

Vue 3 + NestJS

Quick Start

Integration Pattern

Server Walkthrough — NestJS Service

Client Walkthrough — Composables

Vite Dev Proxy

NestJS-Specific Notes

Screenshots

Running the E2E Tests
