Tutorials

Each tutorial builds on the one before it. Start at the top, and by the end you'll have used every major feature. Every example is a complete, runnable server + client pair.

Each tutorial includes screenshots from the automated e2e test suite, captured against a real server running the production bundle in headless Chromium.

---

Contract-first (same as the demos)

Every tutorial uses a shared shared/contract.ts: AppContract extends DatasoleContract, and string enums (RpcMethod, Event, StateKey) hold every RPC name, event name, and state key so call sites use RpcMethod.Add, not 'add'. That matches demos/*/shared/contract.ts and the Developer Guide.

import type { DatasoleContract } from 'datasole';

export enum RpcMethod {
  /* added per tutorial */
}
export enum Event {
  /* added per tutorial */
}
export enum StateKey {
  /* added per tutorial */
}

export interface AppContract extends DatasoleContract {
  rpc: {
    /* [RpcMethod.Foo]: { params: P; result: R } */
  };
  events: {
    /* [Event.Bar]: Payload */
  };
  state: {
    /* [StateKey.Baz]: Value */
  };
}

Server and client are always typed: new DatasoleServer<AppContract>() and new DatasoleClient<AppContract>({ ... }). Helper types: RpcParams, RpcResult, EventData, StateValue.

HTML snippets below use the IIFE global (Datasole.DatasoleClient). In TypeScript/React/Vue, import from datasole/client and pass <AppContract>.

---

1. Hello World — Your First Connection

What you'll learn: Install datasole, connect a client to a server, confirm the WebSocket works.

Time: 2 minutes

Shared — shared/contract.ts (no RPC/events/state yet)

Until you add handlers, use empty maps so DatasoleServer<AppContract> type-checks:

import type { DatasoleContract } from 'datasole';

export interface AppContract extends DatasoleContract {
  rpc: Record<never, never>;
  events: Record<never, never>;
  state: Record<never, never>;
}

Server — server.ts

import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import type { AppContract } from './shared/contract.js';

const ds = new DatasoleServer<AppContract>();
const http = createServer();
ds.transport.attach(http);
http.listen(3000, () => console.log('listening on :3000'));

Client — index.html

<script src="https://unpkg.com/datasole/dist/client/datasole.iife.min.js"></script>
<script>
  const ds = new Datasole.DatasoleClient({ url: 'ws://localhost:3000' });
  ds.connect();
  console.log('connection state:', ds.getConnectionState());
</script>

That's it. No config, no adapters, no plugins. The server listens for WebSocket upgrades on /__ds, the client connects, and the binary handshake completes in the Web Worker.

---

2. RPC — Call the Server, Get a Response

What you'll learn: Register a typed RPC handler on the server, call it from the client, get a typed response.

Time: 3 minutes

Building on: Tutorial 1

Shared — extend shared/contract.ts

import type { DatasoleContract } from 'datasole';

export enum RpcMethod {
  Add = 'add',
}

export interface AppContract extends DatasoleContract {
  rpc: {
    [RpcMethod.Add]: { params: { a: number; b: number }; result: { sum: number } };
  };
  events: Record<never, never>;
  state: Record<never, never>;
}

Server — add RPC handler

import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import { RpcMethod, type AppContract } from './shared/contract.js';

const ds = new DatasoleServer<AppContract>();

ds.rpc.register(RpcMethod.Add, async (params) => {
  return { sum: params.a + params.b };
});

const http = createServer();
ds.transport.attach(http);
http.listen(3000);

Client — call the RPC

<script src="https://unpkg.com/datasole/dist/client/datasole.iife.min.js"></script>
<script>
  const ds = new Datasole.DatasoleClient({ url: 'ws://localhost:3000' });
  ds.connect();

  // Wait for connection, then call the RPC (string value matches RpcMethod.Add)
  setTimeout(async () => {
    const result = await ds.rpc('add', { a: 17, b: 25 });
    console.log('17 + 25 =', result.sum); // 42
  }, 500);
</script>

In TypeScript, import RpcMethod from ./shared/contract.ts and call ds.rpc(RpcMethod.Add, { a: 17, b: 25 }).

Same thing in TypeScript + React

import { DatasoleClient } from 'datasole/client';
import { RpcMethod, type AppContract } from './shared/contract';
import { useEffect, useRef, useState } from 'react';

function Calculator() {
  const ds = useRef(new DatasoleClient<AppContract>({ url: 'ws://localhost:3000' }));
  const [result, setResult] = useState<number | null>(null);

  useEffect(() => {
    ds.current.connect();
    return () => {
      ds.current.disconnect();
    };
  }, []);

  const add = async (a: number, b: number) => {
    const res = await ds.current.rpc(RpcMethod.Add, { a, b });
    setResult(res.sum);
  };

  return (
    <div>
      <button onClick={() => add(17, 25)}>17 + 25 = ?</button>
      {result !== null && <p>Result: {result}</p>}
    </div>
  );
}

---

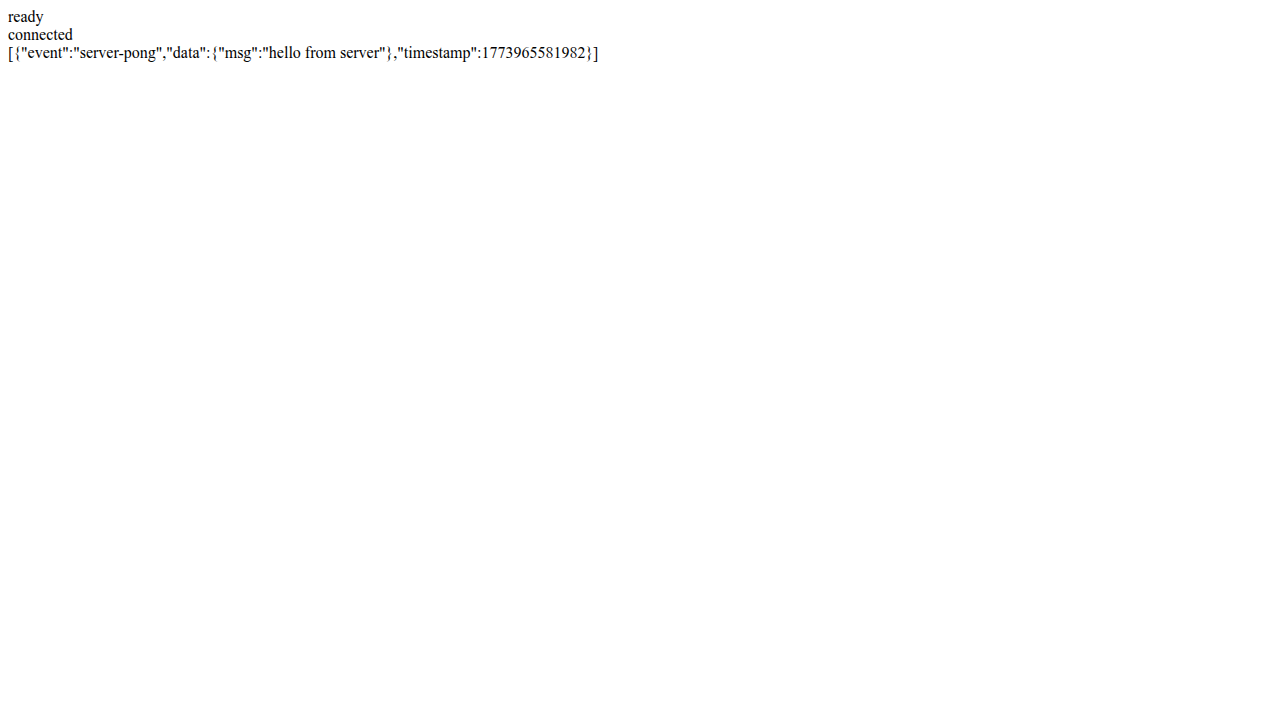

3. Server Events — A Live Stock Ticker

What you'll learn: Push events from the server to all connected clients. No polling, no subscriptions to configure — just broadcast().

Time: 3 minutes

Building on: Tutorial 1

Shared — shared/contract.ts

import type { DatasoleContract } from 'datasole';

export enum Event {
  Price = 'price',
}

export interface PricePayload {
  symbol: string;
  price: number;
  timestamp: number;
}

export interface AppContract extends DatasoleContract {
  rpc: Record<never, never>;
  events: {
    [Event.Price]: PricePayload;
  };
  state: Record<never, never>;
}

Server — broadcast a price every second

import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import { Event, type AppContract } from './shared/contract.js';

const ds = new DatasoleServer<AppContract>();
const http = createServer();
ds.transport.attach(http);
http.listen(3000);

setInterval(() => {
  ds.primitives.fanout.broadcast(Event.Price, {
    symbol: 'TSLA',
    price: 250 + Math.random() * 10,
    timestamp: Date.now(),
  });
}, 1000);

Client — listen for price events

<script src="https://unpkg.com/datasole/dist/client/datasole.iife.min.js"></script>
<h1>TSLA: <span id="price">—</span></h1>
<script>
  const ds = new Datasole.DatasoleClient({ url: 'ws://localhost:3000' });
  ds.connect();
  ds.on('price', ({ data }) => {
    document.getElementById('price').textContent = '$' + data.price.toFixed(2);
  });
</script>

Vue 3 SFC version

<script setup lang="ts">
import { DatasoleClient } from 'datasole/client';
import { Event, type AppContract, type PricePayload } from './shared/contract';
import { onMounted, onUnmounted, ref } from 'vue';

const client = new DatasoleClient<AppContract>({ url: 'ws://localhost:3000' });
const price = ref<string>('—');

onMounted(() => {
  client.connect();
  client.on<PricePayload>(Event.Price, ({ data }) => {
    price.value = `$${data.price.toFixed(2)}`;
  });
});

onUnmounted(() => client.disconnect());
</script>

<template>
  <h1>TSLA: {{ price }}</h1>
</template>

This is the simplest possible pattern for one-way server pushes: dashboards, notifications, live feeds. The client never asks — the server just broadcasts whenever it has something.

---

4. Live State — A Server-Synced Dashboard

What you'll learn: Use setState on the server and subscribeState on the client to keep a complex data structure perfectly in sync. The server owns the data; the client sees a live mirror. Under the hood, datasole sends only the JSON Patch diff — not the full state.

Time: 5 minutes

Building on: Tutorial 1

This is the most common datasole pattern for building reactive frontends: the server mutates its model, and your React/Vue template automatically re-renders. No manual event mapping. No client-side state management library.

Shared — shared/contract.ts

import type { DatasoleContract } from 'datasole';

export enum StateKey {
  Dashboard = 'dashboard',
}

export interface Dashboard {
  visitors: number;
  activeNow: number;
  serverUptime: number;
  lastUpdated: string;
}

export interface AppContract extends DatasoleContract {
  rpc: Record<never, never>;
  events: Record<never, never>;
  state: {
    [StateKey.Dashboard]: Dashboard;
  };
}

Server — a dashboard that updates every second

import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import { StateKey, type AppContract } from './shared/contract.js';

const ds = new DatasoleServer<AppContract>();
const http = createServer();
ds.transport.attach(http);
http.listen(3000);

let visitors = 0;

setInterval(async () => {
  visitors += Math.floor(Math.random() * 5);
  await ds.primitives.live.setState(StateKey.Dashboard, {
    visitors,
    activeNow: Math.floor(Math.random() * 100),
    serverUptime: process.uptime(),
    lastUpdated: new Date().toISOString(),
  });
}, 1000);

Client (React) — the template just works

import { DatasoleClient } from 'datasole/client';
import { StateKey, type AppContract, type Dashboard } from './shared/contract';
import { useEffect, useRef, useState } from 'react';

function LiveDashboard() {
  const ds = useRef(new DatasoleClient<AppContract>({ url: 'ws://localhost:3000' }));
  const [data, setData] = useState<Dashboard | null>(null);

  useEffect(() => {
    ds.current.connect();
    ds.current.subscribeState(StateKey.Dashboard, setData);
    return () => {
      ds.current.disconnect();
    };
  }, []);

  if (!data) return <p>Connecting...</p>;

  return (
    <div>
      <h1>Live Dashboard</h1>
      <p>Total visitors: {data.visitors}</p>
      <p>Active now: {data.activeNow}</p>
      <p>Server uptime: {data.serverUptime.toFixed(0)}s</p>
      <p>Last update: {data.lastUpdated}</p>
    </div>
  );
}

Client (Vue 3 SFC) — equally simple

<script setup lang="ts">
import { DatasoleClient } from 'datasole/client';
import { StateKey, type AppContract, type Dashboard } from './shared/contract';
import { onMounted, onUnmounted, reactive } from 'vue';

const client = new DatasoleClient<AppContract>({ url: 'ws://localhost:3000' });
const dashboard = reactive<Dashboard>({
  visitors: 0,
  activeNow: 0,
  serverUptime: 0,
  lastUpdated: '',
});

onMounted(() => {
  client.connect();
  client.subscribeState(StateKey.Dashboard, (s) => Object.assign(dashboard, s));
});

onUnmounted(() => client.disconnect());
</script>

<template>
  <h1>Live Dashboard</h1>
  <p>Total visitors: {{ dashboard.visitors }}</p>
  <p>Active now: {{ dashboard.activeNow }}</p>
  <p>Server uptime: {{ dashboard.serverUptime.toFixed(0) }}s</p>
  <p>Last update: {{ dashboard.lastUpdated }}</p>
</template>

Notice: no event handlers, no state reducers, no polling. The subscribeState callback fires every time the server calls setState — and only the diff is sent over the wire.

---

5. Client Events + Auth — A Chat Room

What you'll learn: Send events from client to server, authenticate connections, use connection context to track users.

Time: 5 minutes

Building on: Tutorials 1–3

Same pattern as the demos: clients emit Event.ChatSend (payload: text + username); the server broadcasts Event.ChatMessage (full message with id + timestamp) and can mirror history in StateKey.ChatMessages.

Shared — shared/contract.ts

import type { DatasoleContract } from 'datasole';

export enum Event {
  ChatSend = 'chat:send',
  ChatMessage = 'chat:message',
}

export enum StateKey {
  ChatMessages = 'chat:messages',
}

export interface ChatMessage {
  id: string;
  text: string;
  username: string;
  ts: number;
}

export interface AppContract extends DatasoleContract {
  rpc: Record<never, never>;
  events: {
    [Event.ChatSend]: { text: string; username: string };
    [Event.ChatMessage]: ChatMessage;
  };
  state: {
    [StateKey.ChatMessages]: ChatMessage[];
  };
}

Server — authenticated chat with user tracking

import express from 'express';
import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import { Event, StateKey, type AppContract, type ChatMessage } from './shared/contract.js';

const app = express();
app.use(express.static('public'));

const ds = new DatasoleServer<AppContract>({
  authHandler: async (req) => {
    const url = new URL(req.url || '', 'http://localhost');
    const name = url.searchParams.get('token');
    if (!name) return { authenticated: false };
    return { authenticated: true, userId: name, metadata: { displayName: name } };
  },
});

const http = createServer(app);
ds.transport.attach(http);

const chatHistory: ChatMessage[] = [];

ds.primitives.events.on(Event.ChatSend, ({ data }) => {
  const msg: ChatMessage = {
    id: crypto.randomUUID(),
    text: data.text,
    username: data.username,
    ts: Date.now(),
  };
  chatHistory.push(msg);
  if (chatHistory.length > 50) chatHistory.shift();
  void ds.primitives.live.setState(StateKey.ChatMessages, [...chatHistory]);
  ds.primitives.fanout.broadcast(Event.ChatMessage, msg);
});

http.listen(3000);

Client — send and receive chat messages

<script src="https://unpkg.com/datasole/dist/client/datasole.iife.min.js"></script>
<div id="messages"></div>
<input id="input" placeholder="Type a message..." />
<button id="send">Send</button>

<script>
  const username = prompt('Your name?') || 'anon';
  const ds = new Datasole.DatasoleClient({
    url: 'ws://localhost:3000',
    auth: { token: username },
  });
  ds.connect();

  ds.subscribeState('chat:messages', function (messages) {
    document.getElementById('messages').innerHTML = messages
      .map(function (m) {
        return '<div>[' + m.username + '] ' + m.text + '</div>';
      })
      .join('');
  });

  document.getElementById('send').onclick = () => {
    const input = document.getElementById('input');
    ds.emit('chat:send', { text: input.value, username: username });
    input.value = '';
  };
</script>

React version

import { DatasoleClient } from 'datasole/client';
import { StateKey, type AppContract, type ChatMessage } from './shared/contract';
import { useEffect, useRef, useState } from 'react';

function ChatRoom({ username }: { username: string }) {
  const ds = useRef(
    new DatasoleClient<AppContract>({
      url: 'ws://localhost:3000',
      auth: { token: username },
    }),
  );
  const [messages, setMessages] = useState<ChatMessage[]>([]);
  const [input, setInput] = useState('');

  useEffect(() => {
    const client = ds.current;
    client.connect();
    client.subscribeState(StateKey.ChatMessages, setMessages);
    return () => {
      client.disconnect();
    };
  }, []);

  const send = () => {
    ds.current.emit(Event.ChatSend, { text: input, username });
    setInput('');
  };

  return (
    <div>
      <div>
        {messages.map((m) => (
          <p key={m.id}>
            [{m.username}] {m.text}
          </p>
        ))}
      </div>
      <input value={input} onChange={(e) => setInput(e.target.value)} />
      <button onClick={send}>Send</button>
    </div>
  );
}

---

6. Bidirectional CRDT — A Shared Counter

What you'll learn: Use CRDTs for conflict-free bidirectional state. Multiple clients can increment/decrement a counter simultaneously — no conflicts, no server arbitration, values converge automatically.

Time: 5 minutes

Building on: Tutorials 1–4

Shared — shared/contract.ts

import type { DatasoleContract } from 'datasole';

export enum RpcMethod {
  CrdtGetState = 'crdt:getState',
}

export enum Event {
  CrdtOp = 'crdt:op',
  CrdtState = 'crdt:state',
}

/** Narrow these to your CRDT op / serialized state types as you harden the app */
export interface AppContract extends DatasoleContract {
  rpc: {
    [RpcMethod.CrdtGetState]: { params: void; result: unknown };
  };
  events: {
    [Event.CrdtOp]: unknown;
    [Event.CrdtState]: unknown;
  };
  state: Record<never, never>;
}

Server — host a shared CRDT counter

import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import { PNCounter } from 'datasole';
import { Event, RpcMethod, type AppContract } from './shared/contract.js';

const ds = new DatasoleServer<AppContract>();
const http = createServer();
ds.transport.attach(http);
http.listen(3000);

const counter = new PNCounter('server');

ds.primitives.events.on(Event.CrdtOp, ({ data: op }) => {
  counter.apply(op);
  ds.primitives.fanout.broadcast(Event.CrdtState, counter.state());
});

ds.rpc.register(RpcMethod.CrdtGetState, async () => counter.state());

Client — increment from anywhere, state converges

import { DatasoleClient, CrdtStore } from 'datasole/client';
import { PNCounter } from 'datasole';
import { Event, RpcMethod, type AppContract } from './shared/contract';
import { useEffect, useRef, useState } from 'react';

function SharedCounter() {
  const ds = useRef(new DatasoleClient<AppContract>({ url: 'ws://localhost:3000' }));
  const store = useRef(new CrdtStore('client-' + Math.random().toString(36).slice(2)));
  const [count, setCount] = useState(0);

  useEffect(() => {
    const counter = store.current.register('votes', 'pn-counter');
    ds.current.connect();

    ds.current.on(Event.CrdtState, ({ data: state }) => {
      store.current.mergeRemoteState('votes', state);
      setCount(counter.value());
    });

    ds.current.rpc(RpcMethod.CrdtGetState).then((state) => {
      store.current.mergeRemoteState('votes', state);
      setCount(counter.value());
    });

    return () => {
      ds.current.disconnect();
    };
  }, []);

  const increment = () => {
    const counter = store.current.get<PNCounter>('votes')!;
    const op = counter.increment();
    ds.current.emit(Event.CrdtOp, op);
    setCount(counter.value());
  };

  const decrement = () => {
    const counter = store.current.get<PNCounter>('votes')!;
    const op = counter.decrement();
    ds.current.emit(Event.CrdtOp, op);
    setCount(counter.value());
  };

  return (
    <div>
      <h1>Shared Counter: {count}</h1>
      <button onClick={decrement}>−</button>
      <button onClick={increment}>+</button>
      <p>Open this page in multiple tabs — the counter stays in sync.</p>
    </div>
  );
}

---

7. Sync Channels — Controlled Flush Granularity

What you'll learn: Create sync channels that flush at different rates — immediate for latency-critical data, batched for throughput, debounced for user input.

Time: 5 minutes

Building on: Tutorials 1, 4

Sync channel key strings should match the same naming discipline as state keys — use a small enum so they stay consistent with setState / subscribeState if you later route the same logical data through live state.

Shared — shared/contract.ts (minimal; channels are orthogonal to RPC/events)

import type { DatasoleContract } from 'datasole';

/** Keys passed to `createSyncChannel({ key })` — same string values everywhere */
export enum SyncChannelKey {
  Alerts = 'alerts',
  Metrics = 'metrics',
  SearchResults = 'search-results',
}

export interface AppContract extends DatasoleContract {
  rpc: Record<never, never>;
  events: Record<never, never>;
  state: Record<never, never>;
}

Server — three channels, three strategies

import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import { SyncChannelKey, type AppContract } from './shared/contract.js';

const ds = new DatasoleServer<AppContract>();
const http = createServer();
ds.transport.attach(http);
http.listen(3000);

const alerts = ds.primitives.live.createSyncChannel({
  key: SyncChannelKey.Alerts,
  direction: 'server-to-client',
  mode: 'json-patch',
  flush: { flushStrategy: 'immediate' },
});

const metrics = ds.primitives.live.createSyncChannel({
  key: SyncChannelKey.Metrics,
  direction: 'server-to-client',
  mode: 'json-patch',
  flush: { flushStrategy: 'batched', batchIntervalMs: 200 },
});

const search = ds.primitives.live.createSyncChannel({
  key: SyncChannelKey.SearchResults,
  direction: 'server-to-client',
  mode: 'json-patch',
  flush: { flushStrategy: 'debounced', debounceMs: 500 },
});

setInterval(() => {
  metrics.enqueue([
    {
      op: 'replace',
      path: '/cpu',
      value: Math.random() * 100,
    },
  ]);
}, 50);

The same server can mix immediate, batched, and debounced channels on different keys — each tuned for its use case.

---

8. Session Persistence — Surviving Reconnections

What you'll learn: Store per-user state that survives disconnections. When a user reconnects, their session is automatically restored from the persistence backend.

Time: 5 minutes

Building on: Tutorials 4–5

Shared — shared/contract.ts

import type { DatasoleContract } from 'datasole';

export enum RpcMethod {
  SaveProgress = 'saveProgress',
  GetProgress = 'getProgress',
}

export interface AppContract extends DatasoleContract {
  rpc: {
    [RpcMethod.SaveProgress]: {
      params: { level: number; score: number };
      result: { ok: boolean };
    };
    [RpcMethod.GetProgress]: {
      params: void;
      result: { level: number; score: number };
    };
  };
  events: Record<never, never>;
  state: Record<never, never>;
}

Server — persist user progress

import express from 'express';
import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import { RpcMethod, type AppContract } from './shared/contract.js';

const app = express();
const ds = new DatasoleServer<AppContract>({
  authHandler: async (req) => {
    const url = new URL(req.url || '', 'http://localhost');
    const userId = url.searchParams.get('token');
    return userId ? { authenticated: true, userId } : { authenticated: false };
  },
  session: {
    flushThreshold: 5,
    flushIntervalMs: 3000,
  },
});

const http = createServer(app);
ds.transport.attach(http);

ds.rpc.register(RpcMethod.SaveProgress, async (params, ctx) => {
  ds.primitives.sessions.set(ctx.connection.userId!, 'level', params.level);
  ds.primitives.sessions.set(ctx.connection.userId!, 'score', params.score);
  return { ok: true };
});

ds.rpc.register(RpcMethod.GetProgress, async (_params, ctx) => {
  const level = ds.primitives.sessions.get<number>(ctx.connection.userId!, 'level') ?? 1;
  const score = ds.primitives.sessions.get<number>(ctx.connection.userId!, 'score') ?? 0;
  return { level, score };
});

ds.primitives.sessions.onChange((userId, key, value, version) => {
  console.log(`${userId} changed ${key} to ${value} (v${version})`);
});

http.listen(3000);

Client — reconnect and resume

import { DatasoleClient } from 'datasole/client';
import { RpcMethod, type AppContract } from './shared/contract';
import { useEffect, useRef, useState } from 'react';

function Game({ userId }: { userId: string }) {
  const ds = useRef(
    new DatasoleClient<AppContract>({
      url: 'ws://localhost:3000',
      auth: { token: userId },
    }),
  );
  const [level, setLevel] = useState(1);
  const [score, setScore] = useState(0);

  useEffect(() => {
    ds.current.connect();

    ds.current.rpc(RpcMethod.GetProgress).then((p) => {
      setLevel(p.level);
      setScore(p.score);
    });

    return () => {
      ds.current.disconnect();
    };
  }, []);

  const completeLevel = async () => {
    const newLevel = level + 1;
    const newScore = score + 100;
    setLevel(newLevel);
    setScore(newScore);
    await ds.current.rpc(RpcMethod.SaveProgress, { level: newLevel, score: newScore });
  };

  return (
    <div>
      <h1>
        Level {level} — Score {score}
      </h1>
      <button onClick={completeLevel}>Complete Level</button>
      <p>Close this tab and reopen it — your progress persists.</p>
    </div>
  );
}

---

9. Production — Thread Pool, Rate Limiting, Redis, Metrics

What you'll learn: Configure datasole for production with thread-pool concurrency, rate limiting, Redis persistence, and Prometheus metrics. Deploy with pm2 for clustering.

Time: 10 minutes

Building on: All previous tutorials

Shared — shared/contract.ts

import type { DatasoleContract } from 'datasole';

export enum RpcMethod {
  Ping = 'ping',
  HeavyWork = 'heavy-rpc',
}

export interface AppContract extends DatasoleContract {
  rpc: {
    [RpcMethod.Ping]: { params: void; result: { pong: number } };
    [RpcMethod.HeavyWork]: { params: { payload: string }; result: { ok: boolean } };
  };
  events: Record<never, never>;
  state: Record<never, never>;
}

Rate-limit rules keys must match the RPC method string — use RpcMethod.HeavyWork (or RpcMethod.HeavyWork.toString() is unnecessary; the enum value is the wire name).

Server — production configuration

import express from 'express';
import { createServer } from 'http';
import { DatasoleServer, RedisBackend, PrometheusExporter } from 'datasole/server';
import { RpcMethod, type AppContract } from './shared/contract.js';

const app = express();

const redisBackend = new RedisBackend({ url: 'redis://localhost:6379', prefix: 'ds:' });
await redisBackend.connect();

const ds = new DatasoleServer<AppContract>({
  authHandler: async (req) => {
    const url = new URL(req.url || '', 'http://localhost');
    const token = url.searchParams.get('token');
    if (!token) return { authenticated: false };
    return { authenticated: true, userId: token, roles: ['user'] };
  },

  executor: { model: 'thread-pool', poolSize: 4 },

  stateBackend: redisBackend,

  rateLimit: {
    defaultRule: { windowMs: 60_000, maxRequests: 200 },
    rules: {
      [RpcMethod.HeavyWork]: { windowMs: 60_000, maxRequests: 10 },
    },
  },

  session: { flushThreshold: 10, flushIntervalMs: 5000 },
});

const http = createServer(app);
await ds.init();
ds.transport.attach(http);

app.get('/metrics', async (_req, res) => {
  const exporter = new PrometheusExporter('datasole');
  const text = await exporter.export(ds.metrics.snapshot());
  res.type('text/plain').send(text);
});

ds.rpc.register(RpcMethod.Ping, async () => ({ pong: Date.now() }));
ds.rpc.register(RpcMethod.HeavyWork, async () => ({ ok: true }));

http.listen(3000);
console.log('Production datasole server on :3000');

Deploy with pm2 (clustering)

# ecosystem.config.cjs
module.exports = {
  apps: [{
    name: 'datasole',
    script: 'dist/server.js',
    instances: 'max',      // One process per CPU core
    exec_mode: 'cluster',
    env: {
      NODE_ENV: 'production',
      REDIS_URL: 'redis://localhost:6379',
    },
  }],
};

pm2 start ecosystem.config.cjs
pm2 monit

Because datasole's concurrency model keeps no shared mutable state in the main process, and Redis provides cross-process pub/sub, pm2 cluster mode works out of the box.

Concurrency model cheat sheet

Model	Use case	Overhead
async	Default. Chat, notifications (I/O-bound)	Lowest — single event loop
thread	Per-connection game logic (CPU-bound)	Medium — one worker_thread per connection
thread-pool	Recommended for production. General-purpose.	Low–medium — fixed thread pool

---

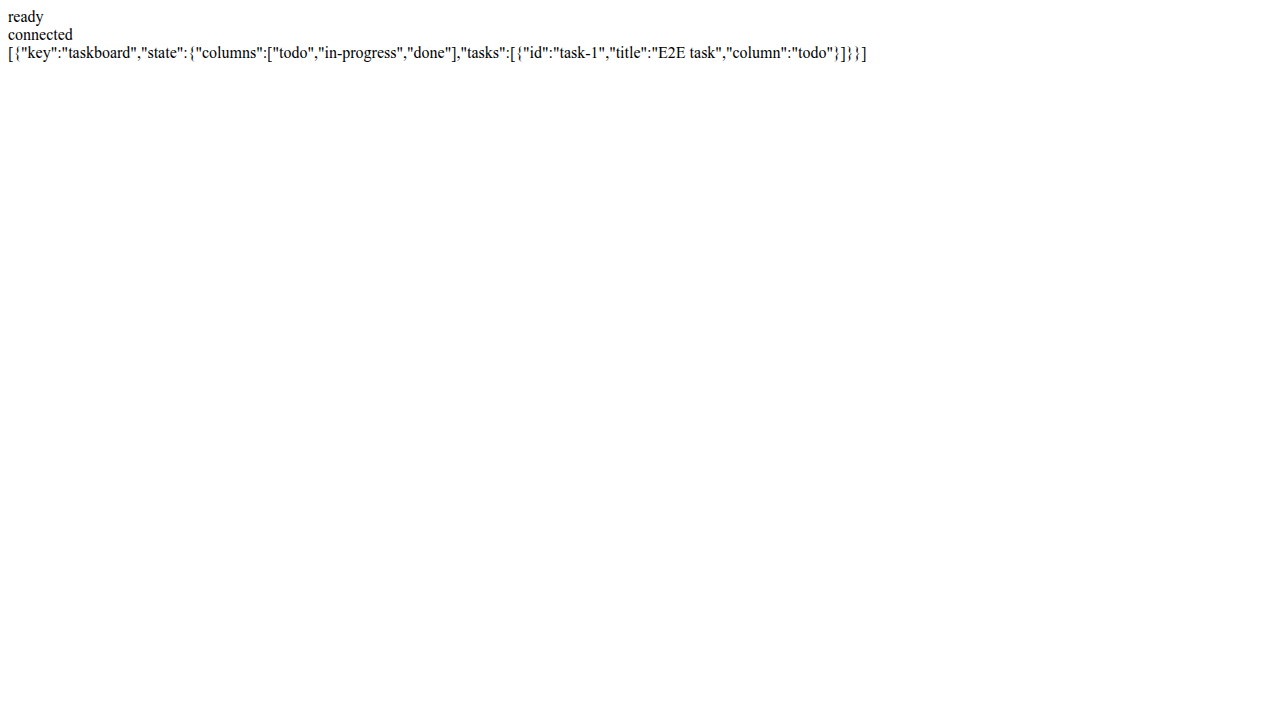

10. Putting It All Together — A Collaborative Task Board

What you'll learn: Combine RPC, live state, events, CRDTs, session persistence, and auth into a single cohesive application.

Time: 15 minutes

Building on: All previous tutorials

This is a simplified Trello-like board where:

• The board state is a live server→client data structure (JSON Patch)
• Adding/moving tasks uses RPC (server validates, updates state, clients see the diff)
• User presence ("who's online") uses CRDT counters (bidirectional, conflict-free)
• Chat uses bidirectional events
• Session persistence restores your view on reconnect
• Rate limiting prevents spam

Shared — shared/contract.ts

import type { DatasoleContract } from 'datasole';

export enum RpcMethod {
  AddTask = 'addTask',
  MoveTask = 'moveTask',
}

export enum Event {
  UserJoin = 'user:join',
  UserLeave = 'user:leave',
  Presence = 'presence',
  ChatSend = 'chat:send',
  ChatMessage = 'chat:message',
}

export enum StateKey {
  Board = 'board',
}

export interface Task {
  id: string;
  title: string;
  column: string;
  assignee?: string;
}

export interface Board {
  tasks: Task[];
  columns: string[];
}

export interface AppContract extends DatasoleContract {
  rpc: {
    [RpcMethod.AddTask]: { params: { title: string }; result: { id: string } };
    [RpcMethod.MoveTask]: { params: { taskId: string; column: string }; result: { ok: boolean } };
  };
  events: {
    [Event.UserJoin]: Record<string, never>;
    [Event.UserLeave]: Record<string, never>;
    [Event.Presence]: unknown;
    [Event.ChatSend]: { text: string };
    [Event.ChatMessage]: { text: string; timestamp: number };
  };
  state: {
    [StateKey.Board]: Board;
  };
}

Server

import express from 'express';
import { createServer } from 'http';
import { DatasoleServer } from 'datasole/server';
import { PNCounter } from 'datasole';
import { Event, RpcMethod, StateKey, type AppContract, type Board } from './shared/contract.js';

const app = express();
app.use(express.static('public'));

const ds = new DatasoleServer<AppContract>({
  authHandler: async (req) => {
    const url = new URL(req.url || '', 'http://localhost');
    const name = url.searchParams.get('token');
    return name
      ? { authenticated: true, userId: name, metadata: { displayName: name } }
      : { authenticated: false };
  },
  executor: { model: 'thread-pool', poolSize: 2 },
  session: { flushThreshold: 3, flushIntervalMs: 2000 },
});

const http = createServer(app);
ds.transport.attach(http);

const board: Board = {
  columns: ['todo', 'in-progress', 'done'],
  tasks: [],
};

async function syncBoard() {
  await ds.primitives.live.setState(StateKey.Board, board);
}
void syncBoard();

ds.rpc.register(RpcMethod.AddTask, async (params) => {
  const id = `task-${Date.now()}`;
  board.tasks.push({ id, title: params.title, column: 'todo' });
  await syncBoard();
  return { id };
});

ds.rpc.register(RpcMethod.MoveTask, async (params) => {
  const task = board.tasks.find((t) => t.id === params.taskId);
  if (task) task.column = params.column;
  await syncBoard();
  return { ok: !!task };
});

const onlineCounter = new PNCounter('server');

ds.primitives.events.on(Event.UserJoin, () => {
  onlineCounter.increment();
  ds.primitives.fanout.broadcast(Event.Presence, onlineCounter.state());
});

ds.primitives.events.on(Event.UserLeave, () => {
  onlineCounter.decrement();
  ds.primitives.fanout.broadcast(Event.Presence, onlineCounter.state());
});

ds.primitives.events.on(Event.ChatSend, ({ data }) => {
  ds.primitives.fanout.broadcast(Event.ChatMessage, { text: data.text, timestamp: Date.now() });
});

http.listen(3000, () => console.log('Task board on :3000'));

Client (React)

import { DatasoleClient, CrdtStore } from 'datasole/client';
import { PNCounter } from 'datasole';
import { Event, RpcMethod, StateKey, type AppContract, type Board } from './shared/contract';
import { useEffect, useRef, useState } from 'react';

function TaskBoard({ username }: { username: string }) {
  const ds = useRef(
    new DatasoleClient<AppContract>({
      url: 'ws://localhost:3000',
      auth: { token: username },
    }),
  );
  const [board, setBoard] = useState<Board>({ tasks: [], columns: [] });
  const [online, setOnline] = useState(0);
  const [messages, setMessages] = useState<string[]>([]);
  const [newTask, setNewTask] = useState('');

  useEffect(() => {
    const client = ds.current;
    client.connect();

    client.subscribeState(StateKey.Board, setBoard);

    const store = new CrdtStore('client-' + username);
    store.register('online', 'pn-counter');
    client.emit(Event.UserJoin, {});
    client.on(Event.Presence, ({ data: state }) => {
      store.mergeRemoteState('online', state);
      setOnline(store.get<PNCounter>('online')!.value());
    });

    client.on(Event.ChatMessage, ({ data: msg }) => {
      setMessages((prev) => [...prev.slice(-49), msg.text]);
    });

    return () => {
      client.emit(Event.UserLeave, {});
      client.disconnect();
    };
  }, [username]);

  const addTask = async () => {
    if (!newTask.trim()) return;
    await ds.current.rpc(RpcMethod.AddTask, { title: newTask });
    setNewTask('');
  };

  const moveTask = (taskId: string, column: string) => {
    void ds.current.rpc(RpcMethod.MoveTask, { taskId, column });
  };

  return (
    <div>
      <header>
        <h1>Task Board</h1>
        <span>{online} online</span>
      </header>

      <div style={{ display: 'flex', gap: '1rem' }}>
        {board.columns.map((col) => (
          <div key={col} style={{ flex: 1 }}>
            <h2>{col}</h2>
            {board.tasks
              .filter((t) => t.column === col)
              .map((task) => (
                <div key={task.id} style={{ padding: '0.5rem', border: '1px solid #ccc' }}>
                  <p>{task.title}</p>
                  {board.columns
                    .filter((c) => c !== col)
                    .map((target) => (
                      <button key={target} onClick={() => moveTask(task.id, target)}>
                        → {target}
                      </button>
                    ))}
                </div>
              ))}
          </div>
        ))}
      </div>

      <div style={{ marginTop: '1rem' }}>
        <input
          value={newTask}
          onChange={(e) => setNewTask(e.target.value)}
          placeholder="New task..."
        />
        <button onClick={addTask}>Add</button>
      </div>

      <div style={{ marginTop: '1rem' }}>
        <h3>Chat</h3>
        {messages.map((m, i) => (
          <p key={i}>{m}</p>
        ))}
      </div>
    </div>
  );
}

This single page uses five datasole patterns simultaneously:

1. RPC — addTask, moveTask
2. Server→client live state — the board, synced via JSON Patch
3. Bidirectional events — chat messages
4. CRDT — online user count, conflict-free across tabs
5. Session persistence — user's board view survives reconnection

---

What to Read Next

You want to...	Read
Understand the binary protocol	Architecture
See every client method	Client API
See every server method	Server API
Swap to Redis or Postgres	State Backends
Set up Prometheus/OpenTelemetry	Metrics
Understand why decisions were made	ADRs
Contribute	Contributing
